Multichannel Tomography Resistivity and Induced Polarization For Geophysics and Geotechnical Survey

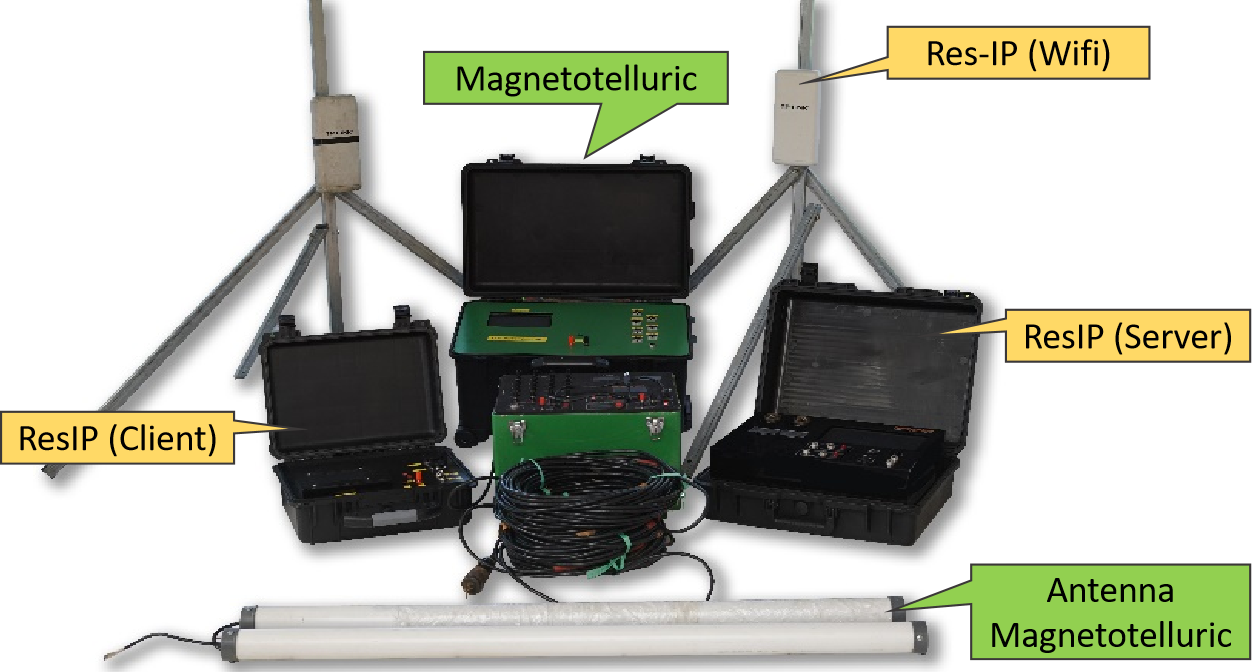

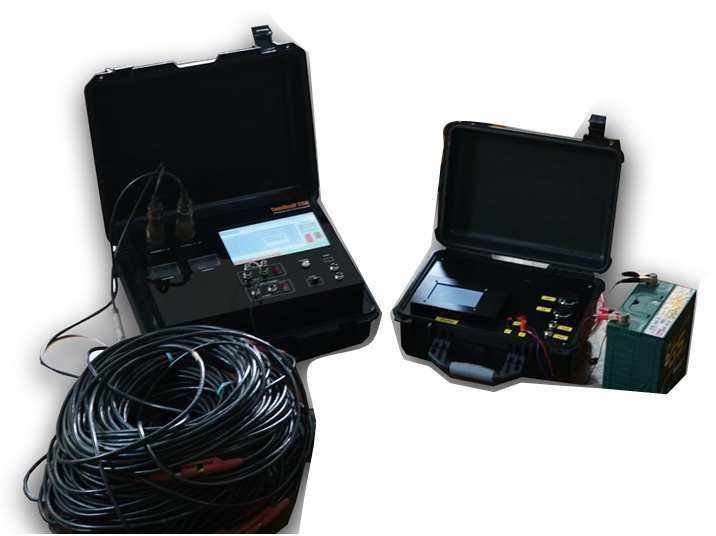

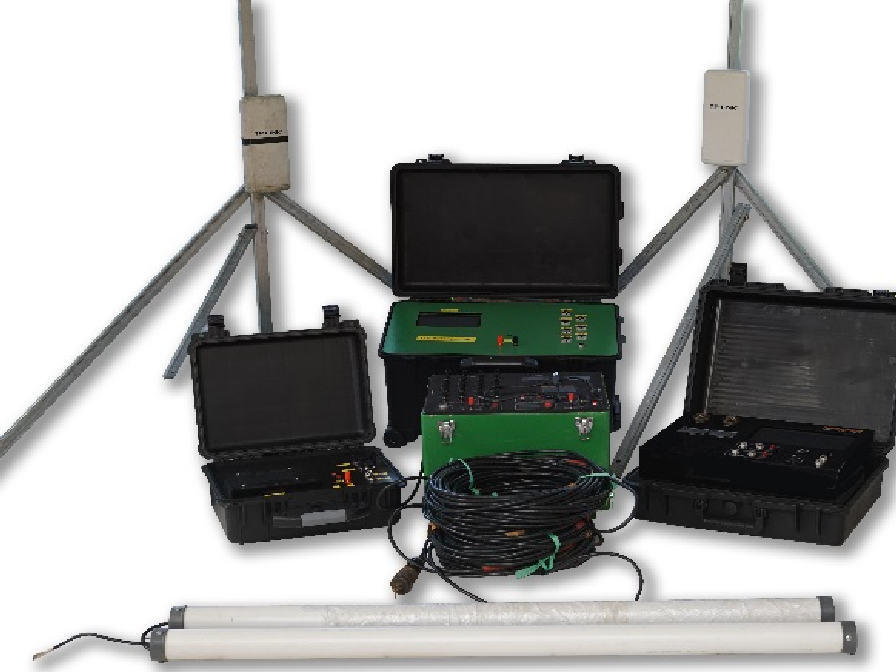

TomoResIPTM series as a portable instrument for Resistivity and Induced Polarization data acquisition with user defined measure cycles. The instrument measures simultaneously up to 24 (and expandable to 48, 96 up to 1024 channels) for each current injection.

The instrument uses a built-in power transmitter and can be used for multi electrode electrical resistivity or induces polarization measurement in 2D and 3D data, vertical electrical sounding (VES), and Mise-a-la-Masse measurement. Other applications are environment investigation, mineral exploration, and underwater survey. The instrument is expandable to connect to personal computer or laptop.






Applications :

-Geothermal Sub Surface Imaging for Exploration and Monitoring
-EOR (Enhanced Oil Recovery) Monitoring
-Mineral exploration
-Marine (Underwater) measurements in fresh and salt water
-Geotechnical investigation for cavity investigation,  stratigraphy, etc.
-Environment investigation for soil contamination, sewage leak, etc.







 Specification

Measurement modes:Self potential, apparent resistivity and induced polarization
Transmitter:up to 3000 W
Output current:up to 5 A
Voltage:up to 1300 Volt
Input Impedance  :10 MOhm
Type of IP measurement:Time domain & frequency domain
Frequency:50-500 Hz
Automatic multi-electrodes:pole-dipole, pole-pole, Wenner alpha and Wenner Schlumberger, dipole-dipole
Power supply:DC 12V
Weight:15 kg (each node)
Dimension:410mm (W), 320mm (L), 200mm (H)
